Sanwin® Airfield Ground Lighting Marking Coating

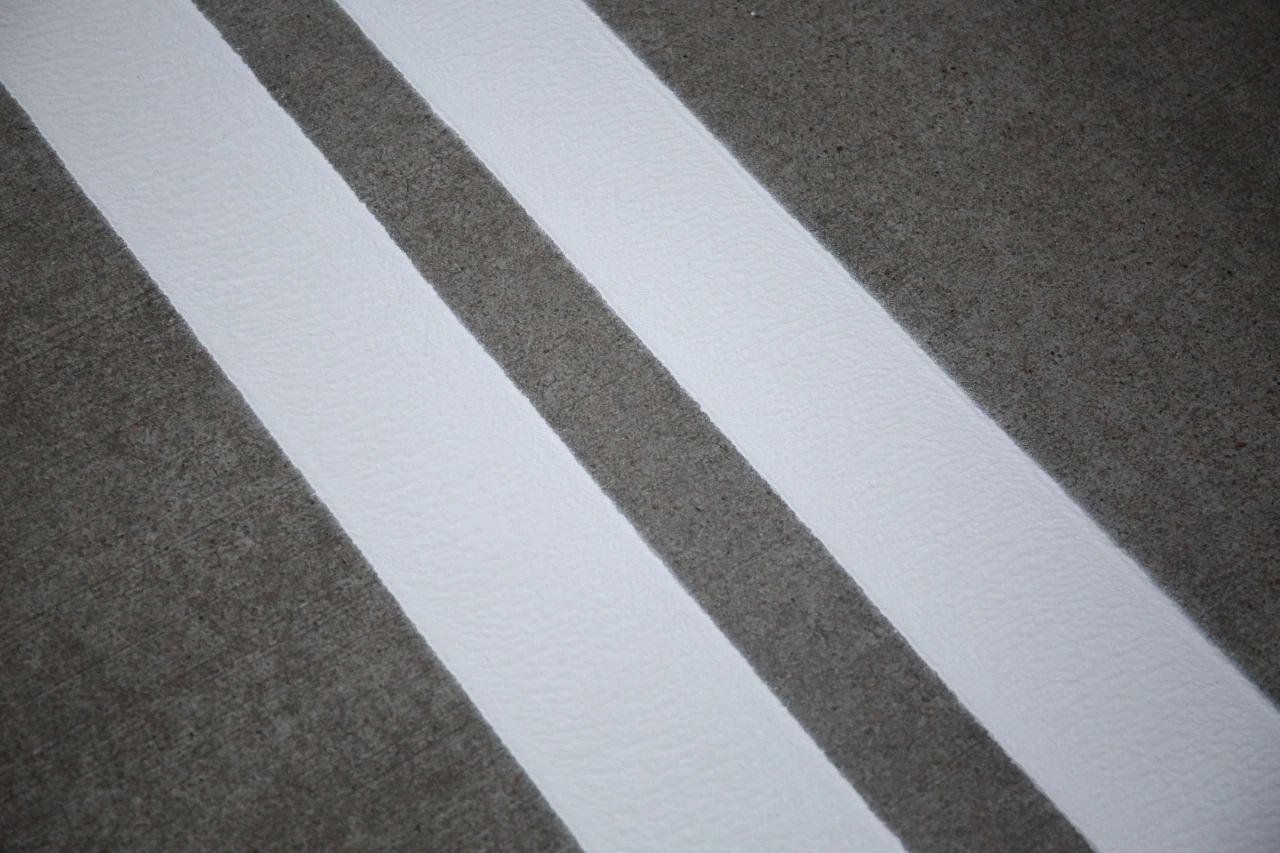

WeChat picture _20231208133715.jpg

Airport roads can also be lit up!



Sanwin Airport Reflective Navigation Aid Sign Coating is specially developed for airport roads, and the whole series includes three types of coatings: two-component, single-component and water-based. Thanks to the new generation of modified hybrid resin, Sanwin Airport Reflective Navigation Aid Mark Coating can not only adhere to the airport road surface for a long time and safely, ensure the safety of field driving, eliminate the risk to the aircraft engine caused by the coating layering and peeling, and firmly adhere to the glass beads, significantly improving the night visibility of the field road sign. The three types of navigational aid marker coatings have unique advantages in terms of service life, construction efficiency and storage and transportation, and can be combined according to project needs and design requirements. Sanwin's innovative airport marking materials and powerful equipment support provide an excellent solution for field marking reflection.


Solvent-free two-component coating SA402

2-component SA402

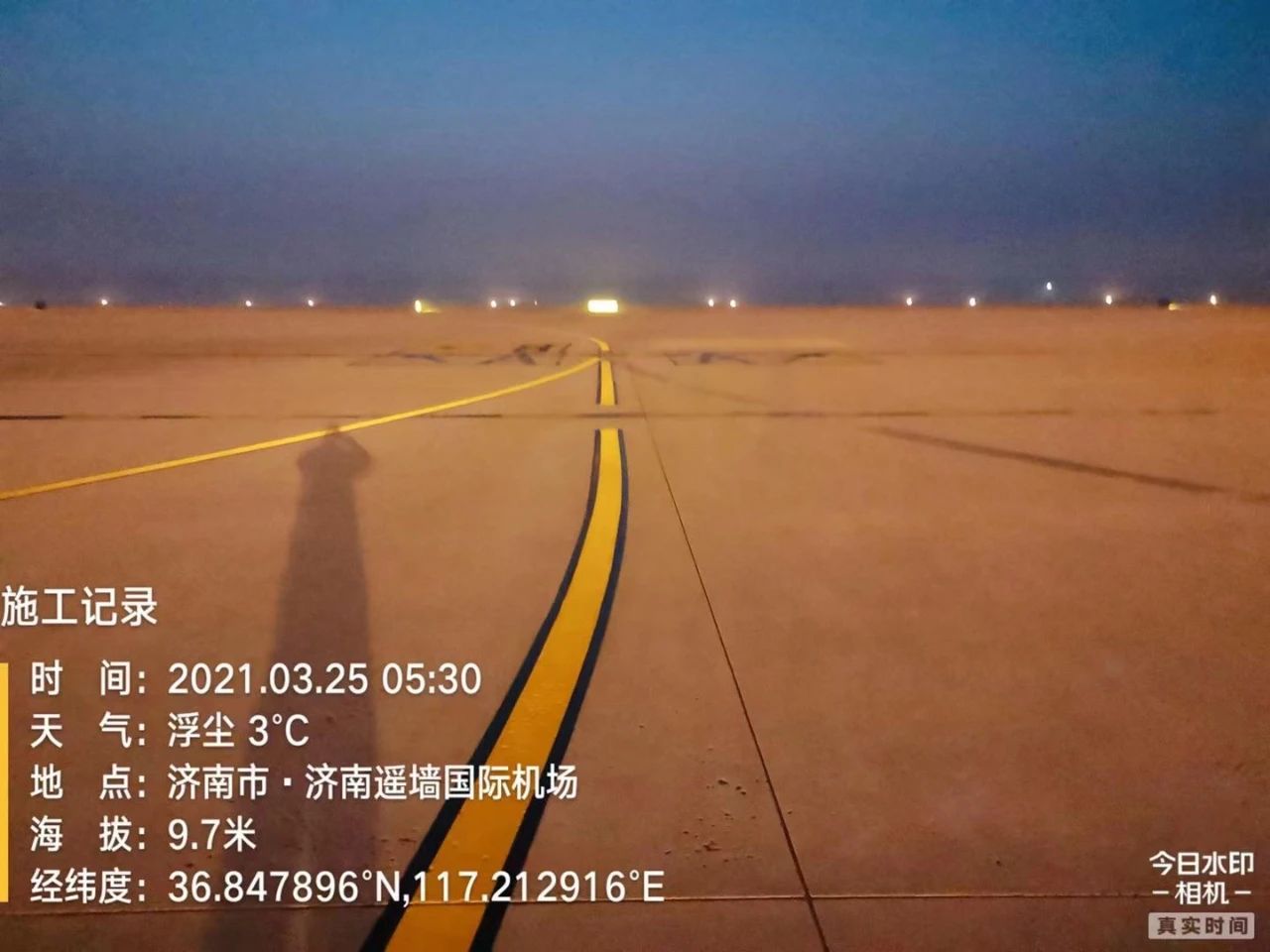

WeChat picture _20231208133729.jpg

▍Product information



Main ingredients: room temperature reactive acrylic resin
Recommended spraying thickness: 0.6~0.8mm
Curing time: 5-15min (non-stick tire time).
Solids content: ≥ 99%
Coating amount per square meter: 0.8~1.2kg (calculated based on wet film thickness of 0.3mm)



▍Features and advantages

◎ The reticle is long-lasting reflective and maintains excellent visibility in low light conditions at night.

◎ The mark is firmly attached to the ground and does not fade after long-term use.
◎ Convert to airport research and development, which can be used as permanent marking.
◎ Anti-seepage, easy to keep clean.
◎ Good flexibility, no layering, no shedding.
◎ Long life cycle, no need for frequent maintenance, reducing the impact on general navigation.




High-solids one-component coating SA002

1-component SA002

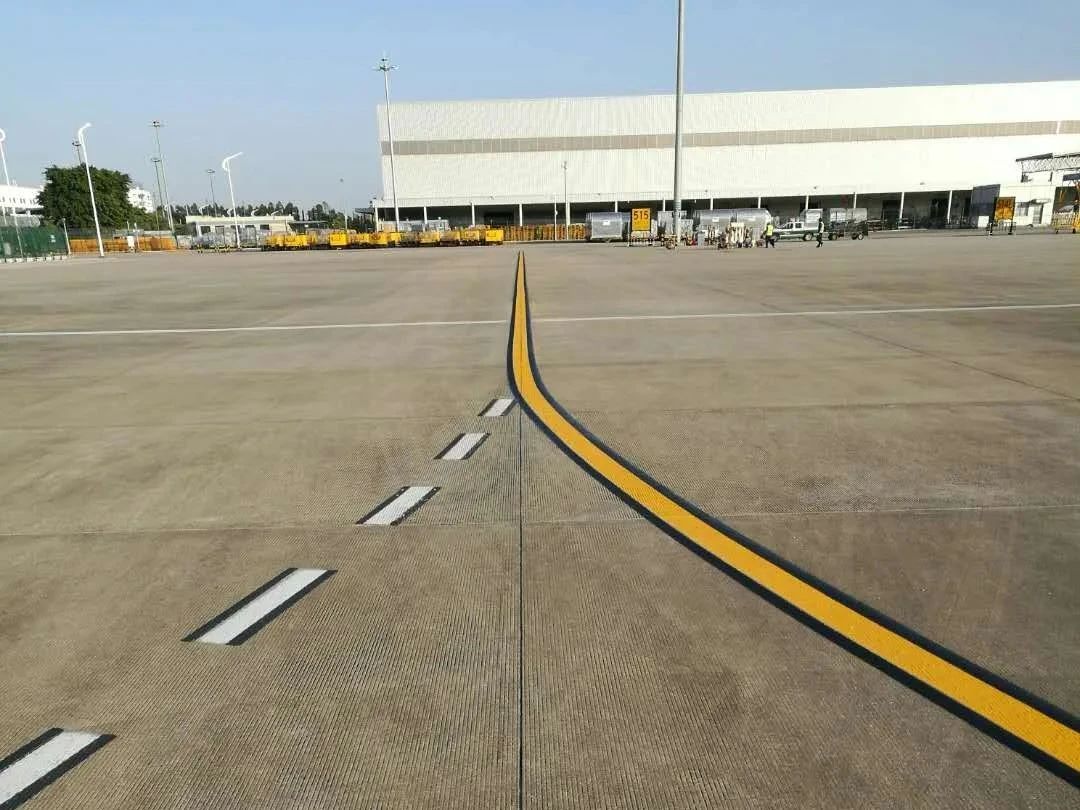

WeChat picture _20231208133735.jpg

▍Product information



Main ingredients: room temperature reactive acrylic resin
Recommended spraying thickness: 0.6~0.8mm
Curing time: 5-15min (non-stick tire time).
Solids content: ≥ 99%
Coating amount per square meter: 0.8~1.2kg (calculated based on wet film thickness of 0.3mm)



▍Features and advantages

◎ Extremely fast drying speed and high construction efficiency.
◎ Low VOC, selected high-quality pigments, lead-free.
◎ UV resistant, non-fading, non-peeling.
◎ It has excellent adhesion to the road surface and glass beads.
◎ Balanced flexibility and durability.
◎ The coating has stable properties and a long shelf life.
◎ Simple construction, can be directly overpainted, and is always new.

WeChat picture _20231208133740.jpg
